Tap and Go!

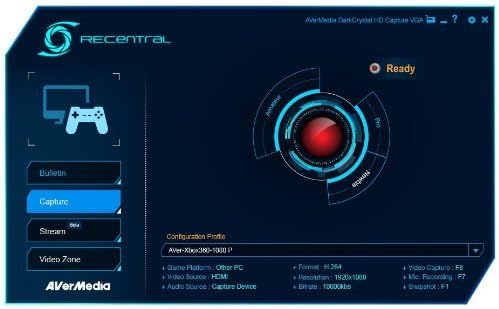

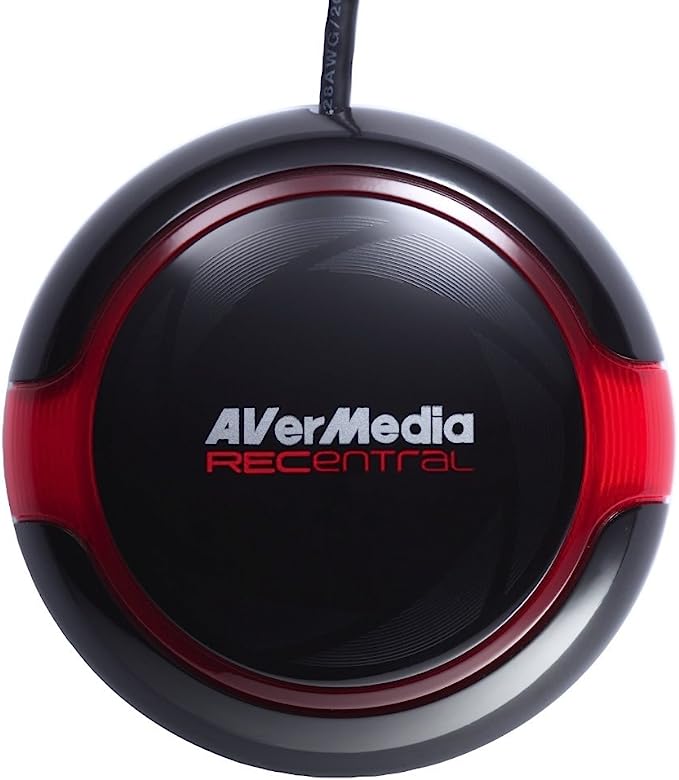

A simple tap is all it takes to start your recording or streaming session in our bundled software RECentral. The Hot Button also acts as an indicator. It flashes red when a session is live, so you’ll know in a glance whether it’s OK to go back to your normal self.
Your Choice of Application and Platform
Live Gamer HD works with any DirectShow compliant streaming application such as XSplit or OBS, and broadcasts to YouTube, Twitch, or Ustream right out of the box. You also have the privilege to record and stream with our exclusive RECentral.

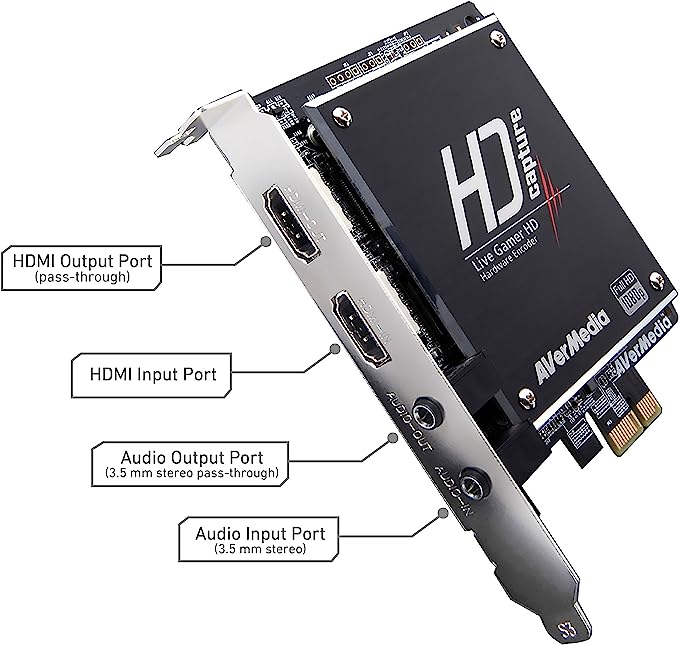

Interface:
PCI-Express x1 / USB (Hot Button)
Video Input:
HDMI
Video Output (Pass-Through):
HDMI
Audio Input:
HDMI / 3-Pole 3.5 mm Jack
Audio Output (Pass-Through):
HDMI / 3-Pole 3.5 mm Jack
Max Pass-Through Resolutions:
1080p60
Max Record Resolutions:
1080p30
Supported Resolutions (Video input):
1080p, 1080i, 720p, 576p, 480p, 480i
Record Format:
MPEG 4 (H.264+AAC) / Supports hardware encoding
Dimension (W x D x H):
123 x 104 x 22 mm (4.8 x 4.1 x 0.9 in)
Weight:
102.5 g (3.6 oz)
System Requirements(For dedicated streaming PC)
Operating system: Windows® 10 / 8.1 / 7 For 1080p30 Intel® Core™ 2 Duo 2.4 GHz / AMD Athlon 64 X2 2.8 GHz
VGA card supporting DirectX 9.0c
512MB RAM

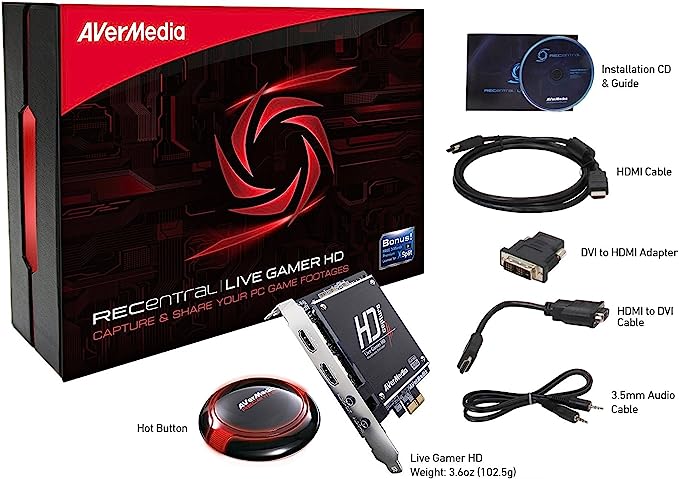

What’s in the box
Live Gamer HD 2 (C985)
Hot button
HDMI cable
HDMI to DVI cable
DVI to HDMI adapter
3.5 mm audio cable
Quick guide
