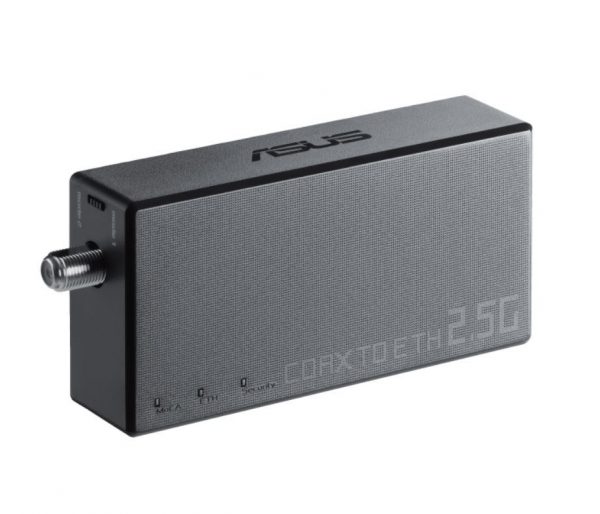

ASUS Coax to Ethernet Adapter (MoCA Adapter) 2.5GB
Model
MA-25
MoCA Standard
MoCA 2.5/2.0
Nodes of MoCA network
up to 16 nodes
Throughput
2.5Gbps MoCA to Ethernet (Full duplex)
Frequency range
Mode 1(4CH) : 1,275 ~ 1,675MHz
Mode 2(5CH) : 1,125 ~ 1,625MHz
Security
MoCA protected setup (MPS)
Interface
MPS Security button
Slide switch for D-band bonded channels selection
COAX IN F-type Female connector
RJ-45 port for 2.5Gbase-T Ethernet
DC-IN port
Wall-mount hole
LED Indicator
MoCA Status
Ethernet Status
Security Status
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1 A / 0.5 A current
Environmental
Operating Temperature: 0 to 40°C ,
Relative Humidity: 10% ~ 90% (non-condensing)
Product Weight (g)
93g
Product Dimension (L*W*H) mm
23.2 x 108 x 54 mm
