High efficiency with 80 PLUS Gold certification
24/7 continuous power output with 40℃ operating temperature
Class-leading single +12V rail

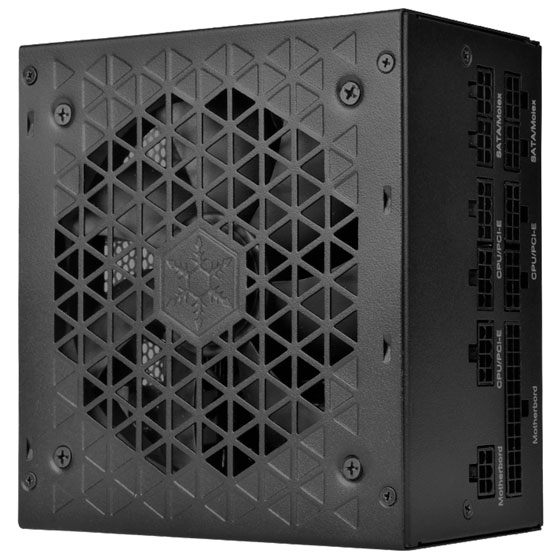

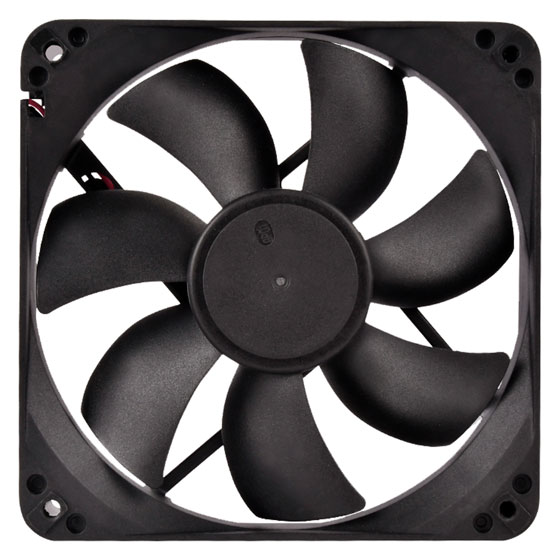

Silent running 120mm FDB fan with 18 dBA minimum

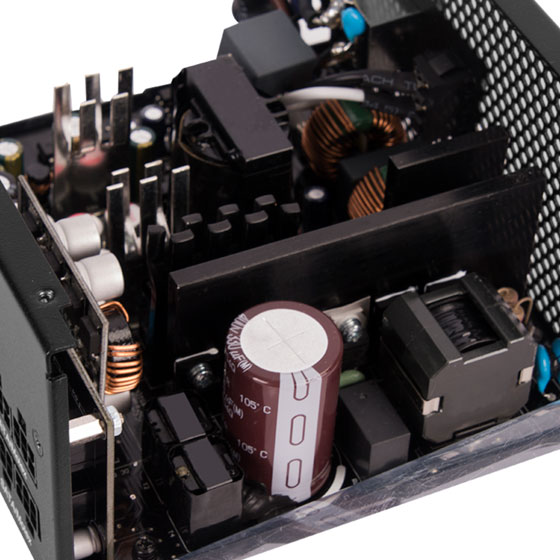

Japanese electrolytic capacitors

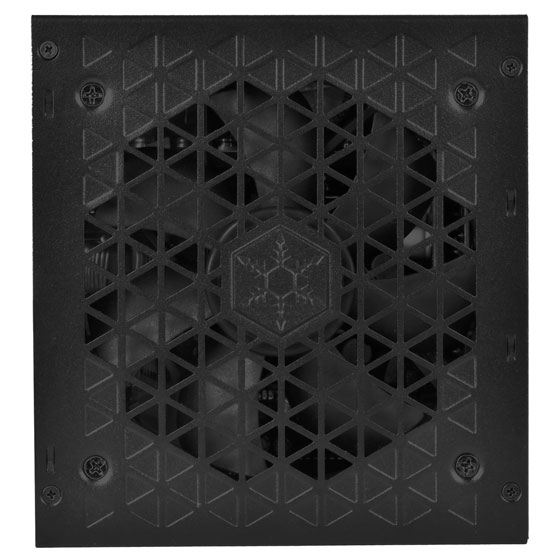

Specially designed cover increases effectiveness of residual heat dissipation
Compact design with a 140mm depth for easy integration
Strict ±3% voltage regulation and low ripple & noise

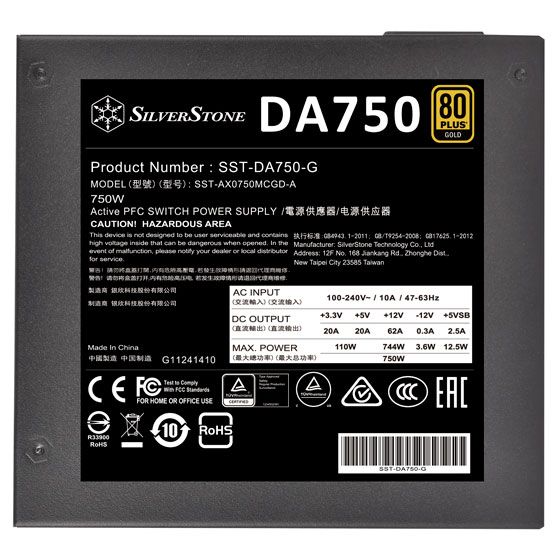

Product No.
SST-DA750-G
Model (safety certification)
SST-AX0750MCGD-A
Color
black (lead-free paint)
Max. DC Output
750W
Power density
415W per liter
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 62A 2.5A 0.3A
Peak (Amps) / / / / 3.0A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±3% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 40mV 30mV 40mV
Combined +3.3V & +5V
110W
Combined +12V
744W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0 ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Over temperature protection

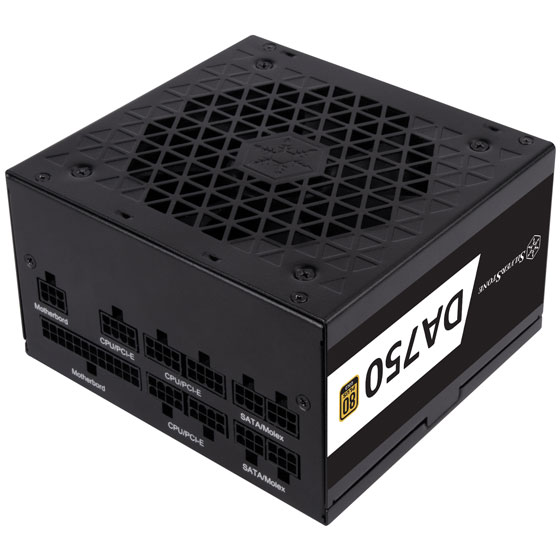

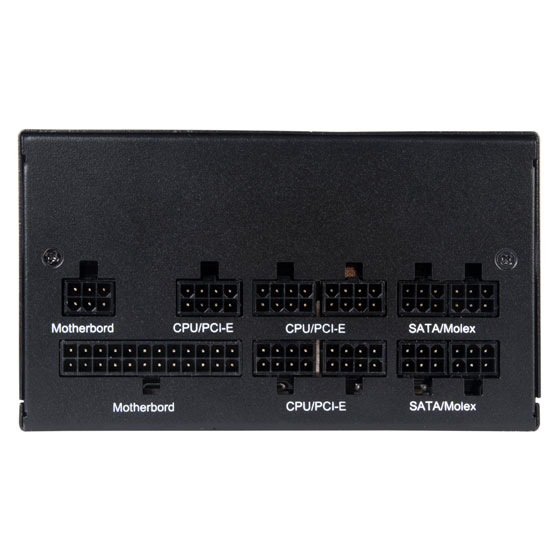

Connectors

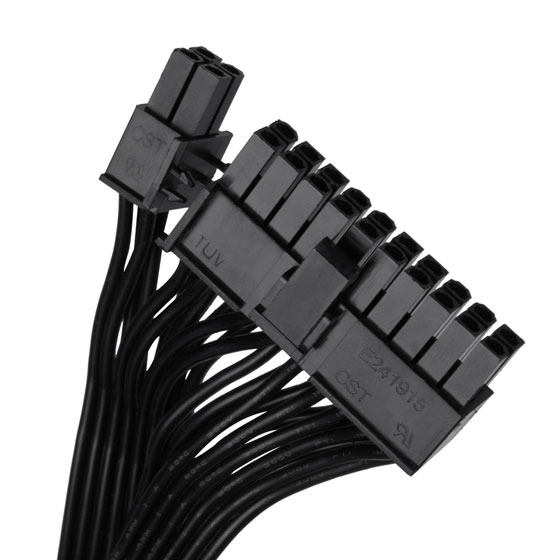

1 x 24 / 20-Pin motherboard connector (600mm)

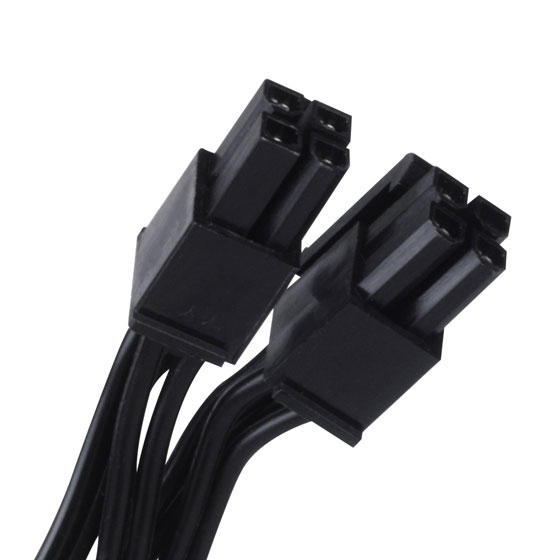

2 x 8 / 4-Pin EPS / ATX 12V connector (“750mm” x 2)

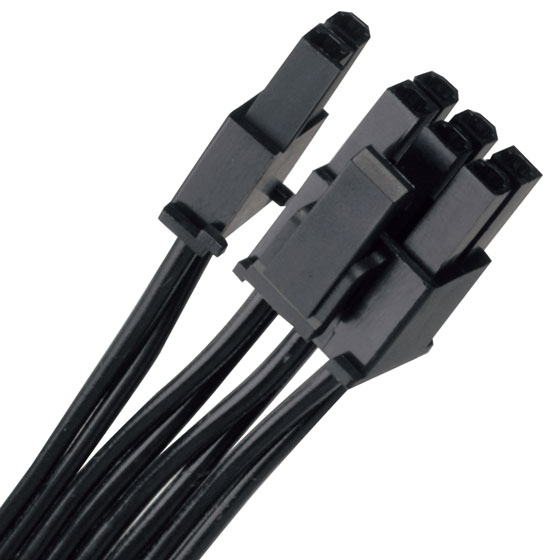

2 x 8 / 6-Pin PCIe connector (“650mm” x 2)
2 x 8 / 6-Pin PCIe connector (“650mm / 150mm”)

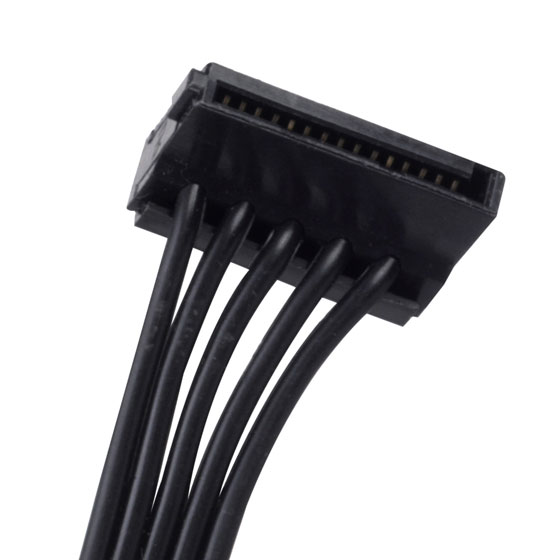

8 x SATA connector (“600mm / 150mm / 150mm / 150mm” x 2)

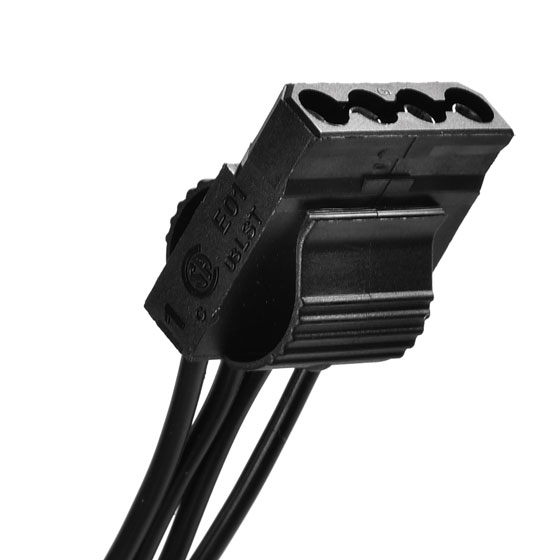

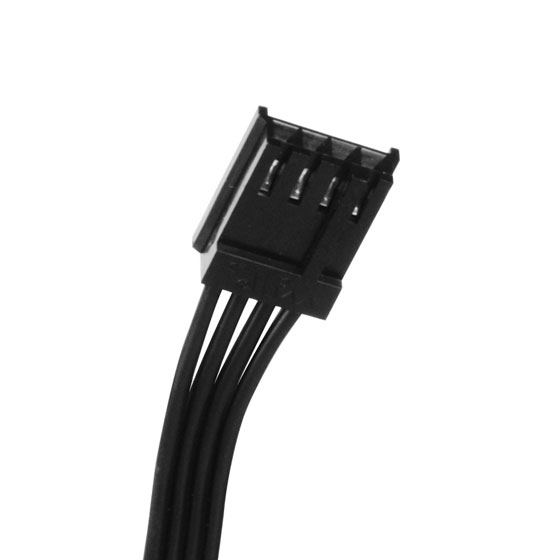

6 x 4-Pin Peripheral connector + 2 x 4-Pin Floppy adapter connector (“600mm / 150mm / 150mm / 150mm” x 2)
Cooling System
Silent 120mm FDB fan
Noise Level
18 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
Weight
1.44 kg
Other
GPU Support list
