2U RACKMOUNT CHASSIS
Motherboard
Micro-ATX (9.6″ x 9.6″), Mini-ITX (6.7″ x 6.7″)
Main metal thickness
1mm
Drive Bay

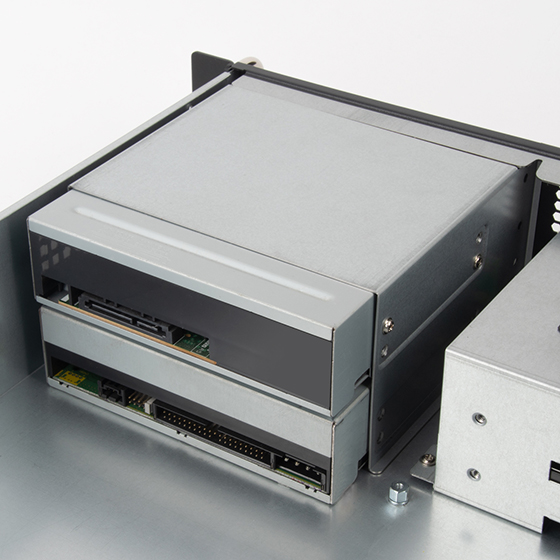

External
5.25″ x 2 *

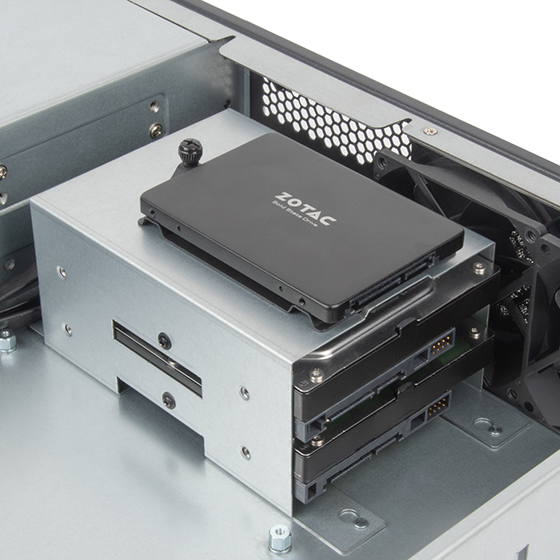

Internal
3.5″ x 2
2.5″ x 1
Power Supply
ATX (PS2) / 2U Single / 2U Redundant* (optional)
Cooling system

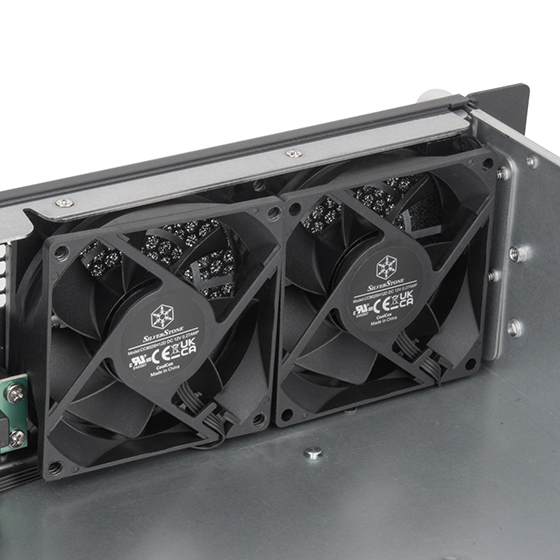

Front
80 x 25mm fan slot x 2
Limitation of CPU cooler
65mm

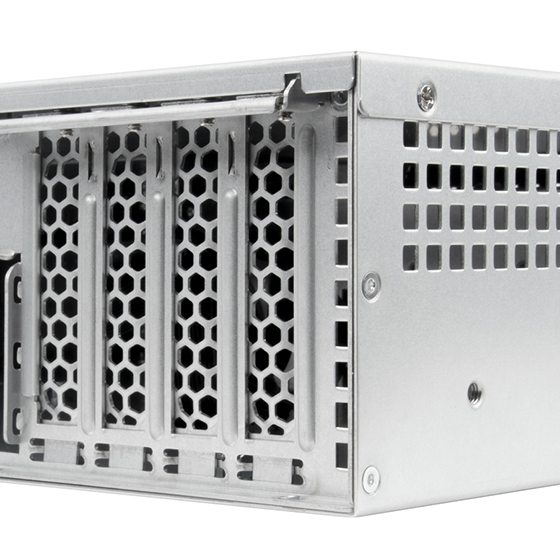

Expansion Slot
Low profile PCI / PCIe x 4

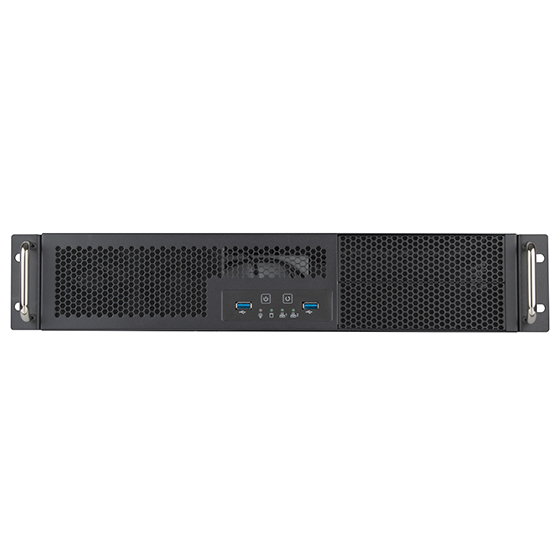

Front I/O Port
USB 3.1 Gen 1 Type-A x 2**
Front buttons
Power On / Off, system reset
Indicators
Power status x 1
HDD activity x 1
LAN activity x 2
Dimension
430mm (W) x 88.5mm (H) x 400mm (D), 15.22 Liters
Net Weight
4.8 kg
