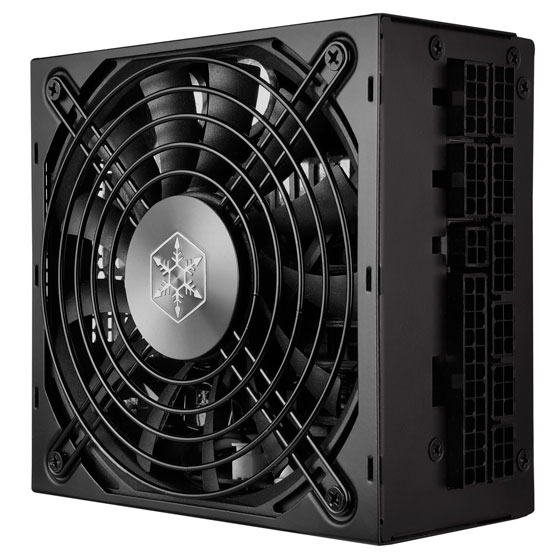

SST-SX1000-LPT

SGD 355.96

Availability:Out Of Stock

Description
  • SFX-L form factor for use in small form factor computers
  • 1000W continuous power output rated for 24/7 operation
  • Class-leading single +12V rail with 83.3A
  • High efficiency with 80 PLUS Platinum certification

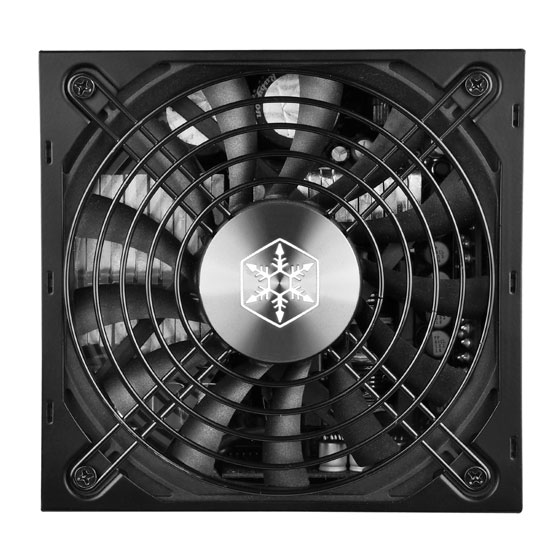

  • Silent running 120mm dual ball bearing fan with advanced semi-fanless operation
  • 100% modular short cables with flexible flat arrays
  • Strict ±3% voltage regulation and low ripple & noise
  • 24/7 continuous power output with 50℃ operating temperature
  • High quality construction with all Japanese capacitors

Product No.
SST-SX1000-LPT

Model (safety certification)
SST-SX1000-LPT

Color
Black（Lead-Free Paint）

Max. DC Output
1000W

Power density
969W per liter

Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 25A 25A 83.3A 3.0A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 100mV 40mV 80mV

Combined +3.3V & +5V
125W

Combined +12V
999.6W

Input Voltage
90V ~ 264V

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC（PF>0.9 at full load）

Efficiency
89% ~ 92% at 20% ~ 100% loading

MTBF
100,000 hours

Operating temperature
0°C ~ 50°C

Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Over temperature protection

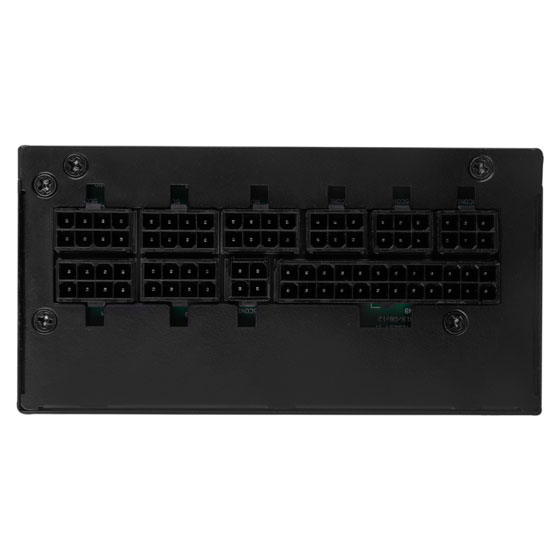

Connectors
1 x 24 / 20-Pin motherboard connector（300mm）
2 x 8 / 4-Pin EPS / ATX 12V connector（”400mm” x 2）
6 x 8 / 6-Pin PCIE connector（”400mm / 150mm” x 3）
8 x SATA connector（”300mm / 200mm / 100mm / 100mm” x 2）
3 x 4-Pin Peripheral connector（300mm / 200mm / 200mm）
1 x 4-Pin Floppy adapter connector（100mm）

Cooling System
Single 120mm dual ball bearing fan

Noise Level
0 ~ 36 dBA

Certification
80 PLUS Platinum

Form factor
SFX-L

Dimension
125 mm (W) x 63.5 mm (H) x 130 mm (D)

Weight
1.39 Kg

Other
GPU Support list
