SST-SX700-G

Product No.
SST-SX700-G

Color
Black（Lead-Free Paint）

Max. DC Output
700W

Power density
882W per liter

Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 58.4A 2.5A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV

Combined +3.3V & +5V
110W

Combined +12V
700W

Input Voltage
90V ~ 264V

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC (PF>0.9 at full load)

Efficiency
87% ~ 90% at 20% ~ 100% loading

MTBF
100,000 hours

Operating temperature
0°C ~ 40°C

Protection
Over current protection

Over power protection

Over voltage protection

Short circuit protection

Under voltage protection

Over temperature protection

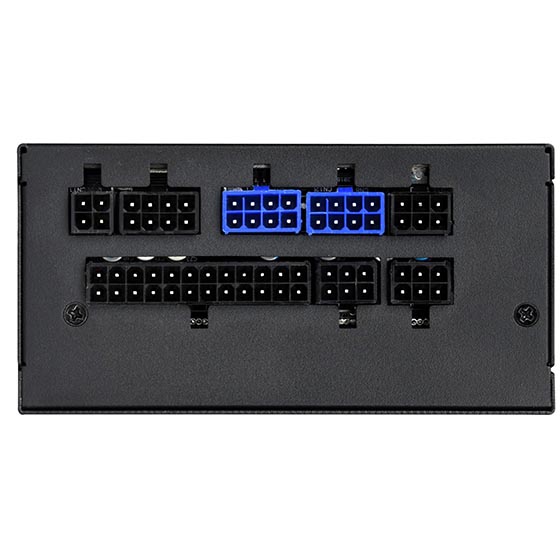

Connectors
V1.0

1 x 24 / 20-Pin motherboard connector (300mm)

1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)

2 x 8 / 6-Pin PCIe connector (400mm / 150mm)

2 x 8 / 6-Pin PCIe connector (550mm / 150mm)

6 x SATA connector (“300mm / 200mm / 100mm” x 2)

3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)

1 x 4-Pin Floppy connector (100mm)

V1.1

1 x 24 / 20-Pin motherboard connector (300mm)

*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (400mm / 150mm)

2 x 8 / 6-Pin PCIe connector (400mm / 150mm)

2 x 8 / 6-Pin PCIe connector (550mm / 150mm)

6 x SATA connector (“300mm / 200mm / 100mm” x 2)

3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)

1 x 4-Pin Floppy connector (100mm)

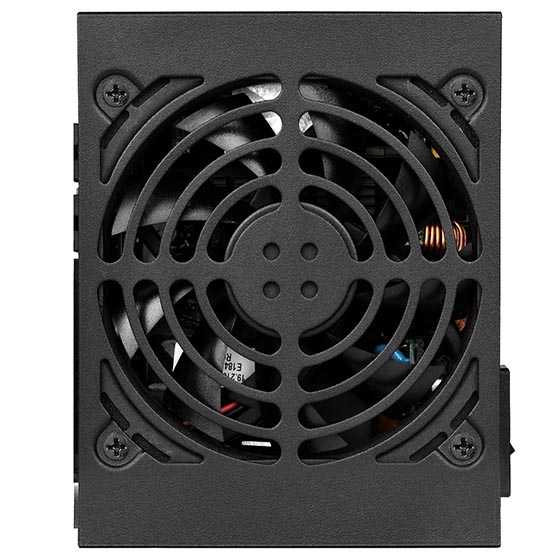

Cooling System
Single 92mm FDB fan
Noise Level
18 dBA minimum
Certification
80 PLUS Gold

Form factor
SFX

Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)

Weight
1.4 Kg

Other
GPU Support list
